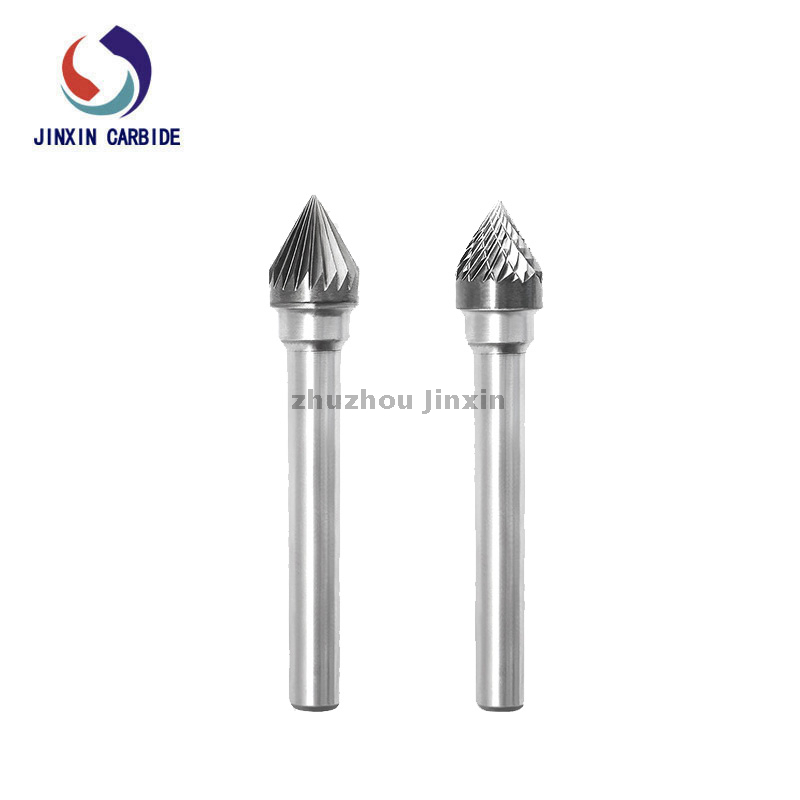

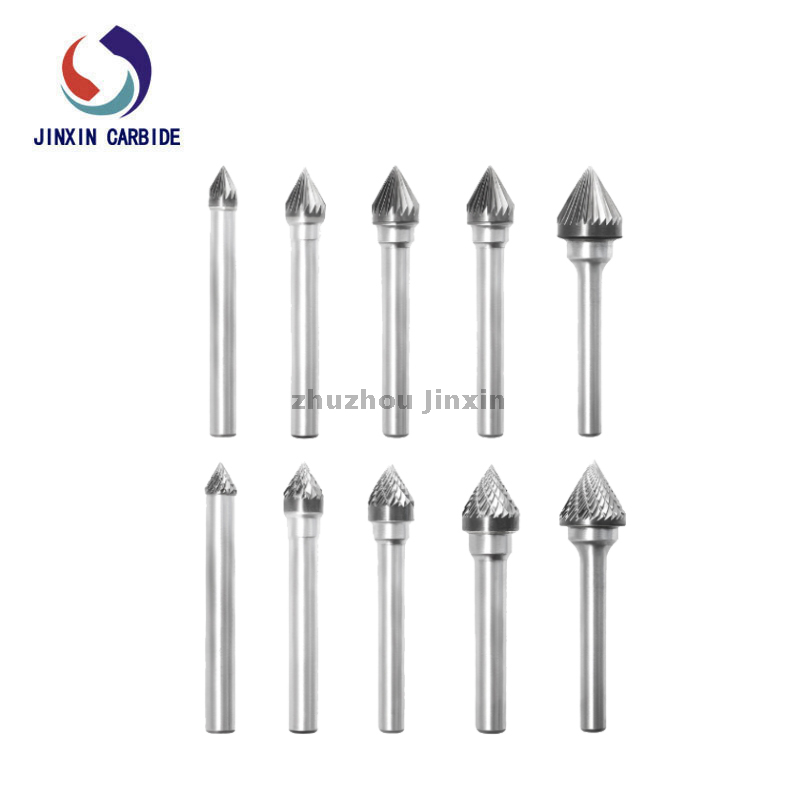

Type J Cone Shape with 60° degreeTungsten Carbide Rotary Burrs
Shape & Type | Item No. | Cut Dia | Cut Length | Shank Length | Overall Length |
Cone Shape with 60° degree
Type J | J0605M06-45 | 6 | 5.2 | 6 | 50 |
J0807M06-45 | 8 | 7 | 6 | 52 |

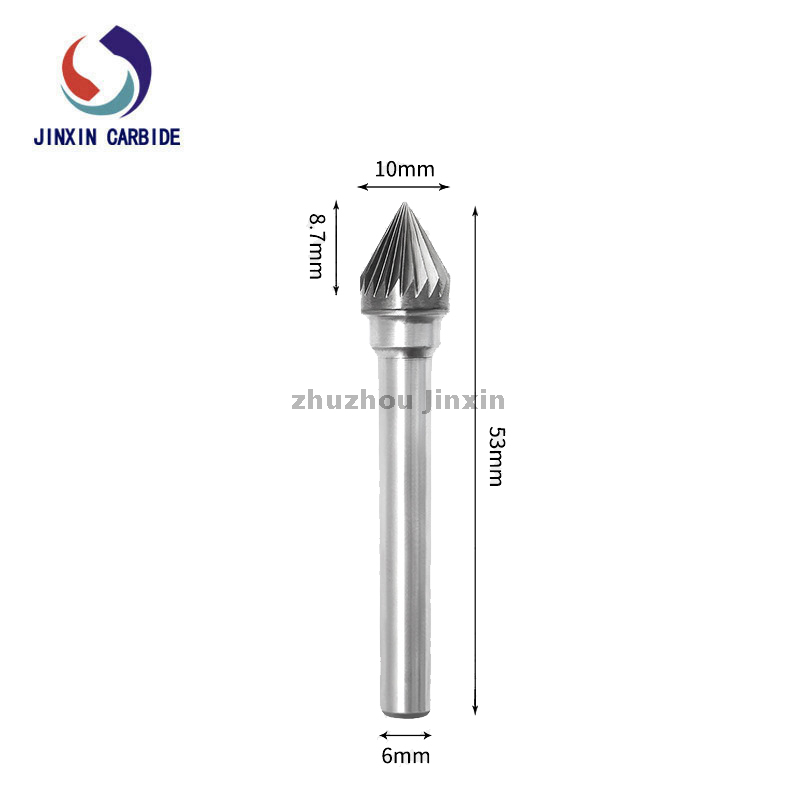

J1008M06-45 | 10 | 8.7 | 6 | 53 |
J1210M06-45 | 12 | 10.4 | 6 | 55 |
J1613M06-45 | 16 | 13.8 | 6 | 58 |
Application:
Tungsten carbide rotary burr is an effective way to realize merchanization in hand work operations, in the industries of airplane,ship building,automobile, machinery , chemistry, dental, etc. Cemented arbide rotary burrs can be widely used in maching iron,steel casting, carbon steel, alloy steel, stainless steel, copper aluminium , etc.
Feature:
1. Material: 100% virgin raw material with submicron grain size;
2. Grade: Various grades for choice;
3. Advanced production equipments and testing equipments
4. Precision Ground and polished;
5. High wear resistance,high hardness and impact toughness;
6. Samples & small orders are acceptable.
About the shape types:

About the cut types:
Manufactured on premium automated CNC machines, carbide burrs are available in three main styles of cuts – single, double and aluminum.
Single-cut burrs are for general purpose work and provide good material removal.
Double-cut burrs produce smaller chips for greater operator control on applications such as stainless steels and ferrous materials.
Aluminum-cut burrs have a wide flute design for easy stock removal without loading on applications such as nonferrous and soft materials.
