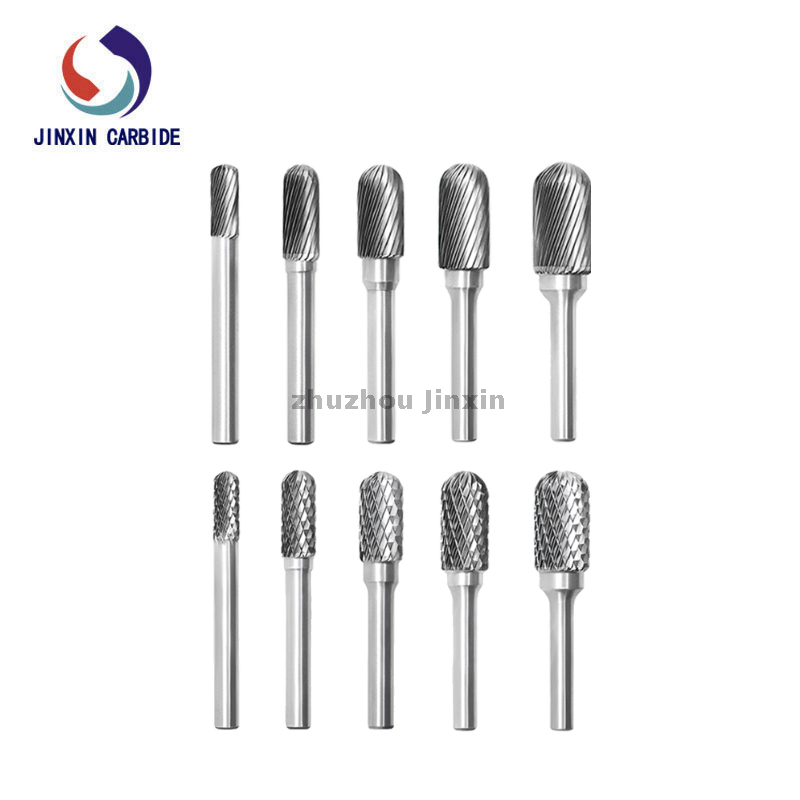

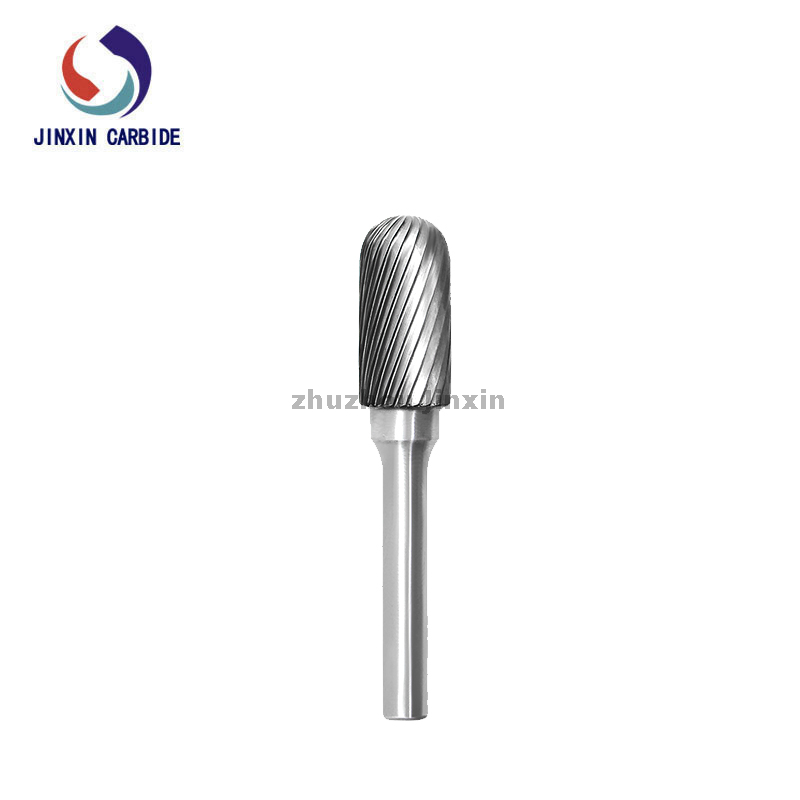

Type C Cylindrical Ball Nose Tungsten Carbide Rotary Burrs

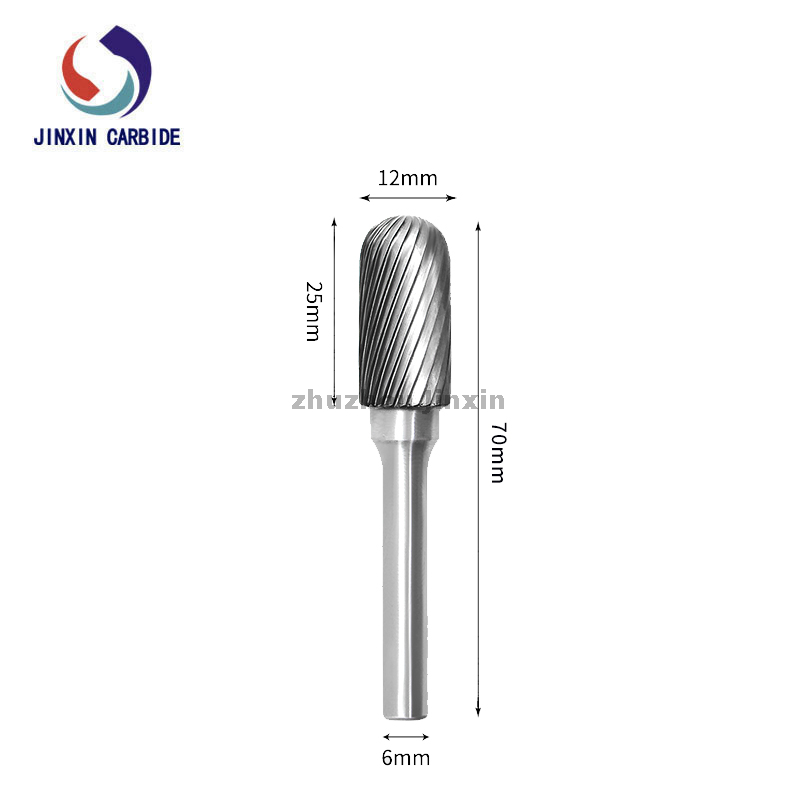

|Shape & Type ||Item No. ||Cut Dia ||Cut Length ||Shank Length ||Overall Length |
|Cylindrical Ball Nose |
|C0313M03-45 ||3 ||13 ||3 ||50 |
|C0413M04-45 ||4 ||13 ||3 ||50 |
|C0616M06-45 ||6 ||16 ||6 ||61 |
|C0820M06-45 ||8 ||20 ||6 ||65 |
|C1020M06-45 ||10 ||20 ||6 ||65 |
|C1225M06-45 ||12 ||25 ||6 ||70 |
|C1425M06-45 ||14 ||25 ||6 ||70 |
|C1625M06-45 ||16 ||25 ||6 ||70 |
Tungsten carbide rotary burr is an effective way to realize merchanization in hand work operations, in the industries of airplane,ship building,automobile, machinery , chemistry, dental, etc. Cemented arbide rotary burrs can be widely used in maching iron,steel casting, carbon steel, alloy steel, stainless steel, copper aluminium , etc.
1. Material: 100% virgin raw material with submicron grain size;
2. Grade: Various grades for choice;
3. Advanced production equipments and testing equipments
4. Precision Ground and polished;
5. High wear resistance,high hardness and impact toughness;
6. Samples & small orders are acceptable.
About the shape types:
About the cut types:
Manufactured on premium automated CNC machines, carbide burrs are available in three main styles of cuts – single, double and aluminum.
Single-cut burrs are for general purpose work and provide good material removal.
Double-cut burrs produce smaller chips for greater operator control on applications such as stainless steels and ferrous materials.
Aluminum-cut burrs have a wide flute design for easy stock removal without loading on applications such as nonferrous and soft materials.
