Tungsten Carbide Studs for HPGR Machine

Tungsten carbide studs for roller presses, mainly used on roller presses, significantly improve the wear resistance of the roller face compared to conventional overlay roller faces, and The service life of the roller press is enhanced. It has high hardness, high strength and good impact resistance. The service life of the surfacing material has been increased by more than 10 times.

Availability:
Quantity:
  • Tungsten carbide studs
  • Jinxin

Product Description

Tungsten carbide studs for roller presses, mainly used on roller presses, significantly improve the wear resistance of the roller face compared to conventional overlay roller faces, and The service life of the roller press is enhanced. It has high hardness, high strength and good impact resistance. The service life of the surfacing material has been increased by more than 10 times.


High pressure roller presses are gradually gaining recognition in the market for their high crushing efficiency, low energy consumption and high material yield. The performance of the carbide roller press nails determines the operating conditions of the roller press.

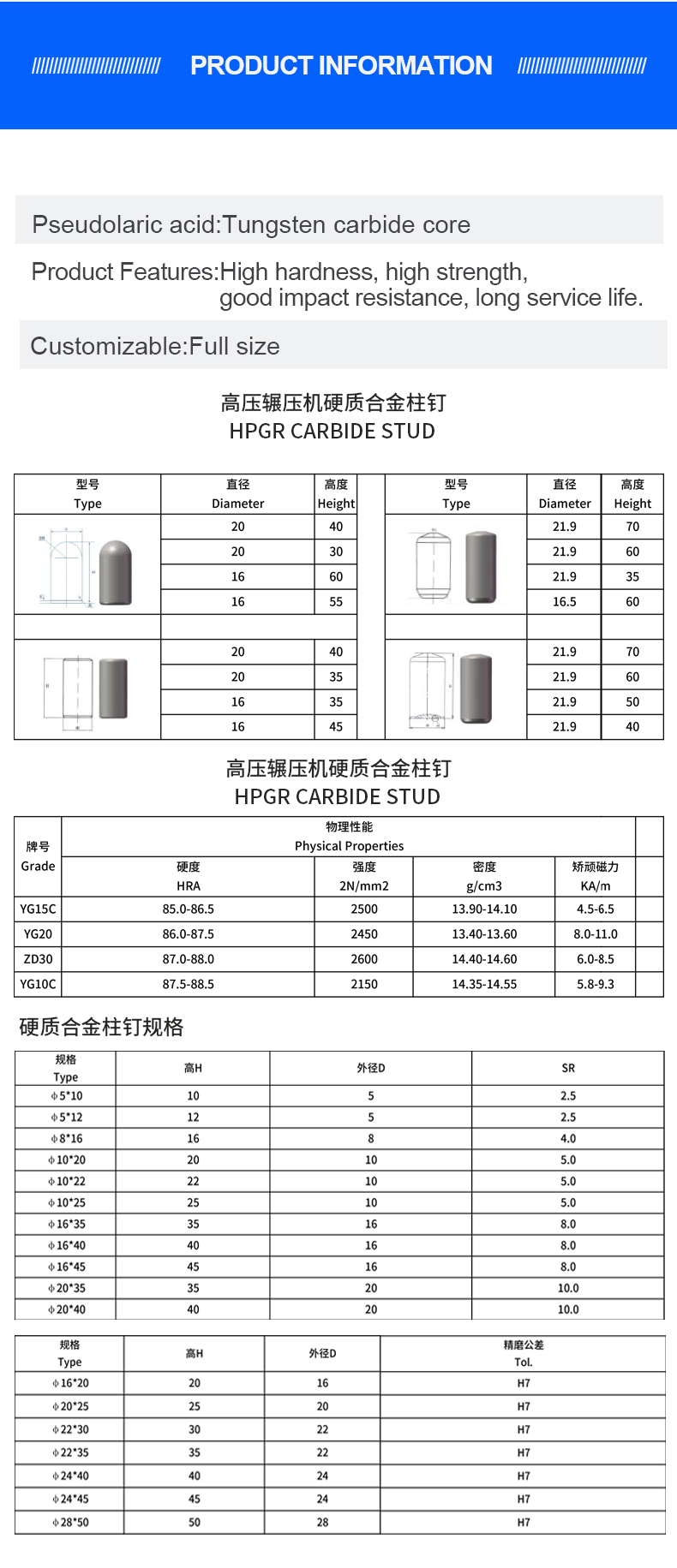

Common grades for tungsten carbide studs:

Grades Density(g/cm3)

Hardness

(HRA)

Strength

(≥N/mm2

JX-11 14.4 87 2700
JX-15 14 87 3000
JX650 13.8 88.2 3100
JX20 13.5 85.5 3200
JX18 13.7 86.8 3200


Features of tungsten Carbide studs

1. The corners are rounded and chamfered to avoid local damage during production, transportation, installation and use.

2. Sintering using overpressure sintering, the product density is good, high strength.

3. Special technology is used to eliminate surface stress after processing and to increase surface hardness.


Toothed method for tungsten carbide studs

1. cladding welding

2. cold pressing
3. hot setting

4. gluing



Products Show:

tungsten carbide studs


Application:

application for tungsten carbide studs
