Choosing the right carbide glass cutter is essential for achieving clean scoring lines, consistent cutting performance, and a longer tool life. Although glass cutters may look simple, factors such as glass thickness, glass type, cutting wheel geometry, carbide grade, and cutting method can significantly affect the final result.
For professional glass processors, tool manufacturers, and distributors, selecting the right tungsten carbide glass cutter can improve cutting efficiency while reducing tool replacement and production costs.
The first step in choosing a carbide glass cutter is identifying the type of glass you need to cut.
Common applications include:
Float glass
Architectural glass
Window glass
Mirror glass
Decorative glass
Furniture glass
Automotive glass
Industrial glass
Different types of glass may have different hardness, thickness, surface coatings, and cutting characteristics.
Therefore, a cutting wheel designed for one application may not provide the same performance in another.
Glass thickness is another important factor.
Thin glass and thick glass may require different cutting wheel geometries and cutting pressures.
Before selecting a carbide glass cutter, determine the thickness range of the glass being processed.
For example:
Thin glass may require a fine and precise cutting geometry.
Medium-thickness glass may require a balanced combination of sharpness and durability.
Thick glass may require a more robust cutting wheel with suitable toughness.
The correct selection can help create a stable score without excessive pressure or unnecessary damage to the glass.

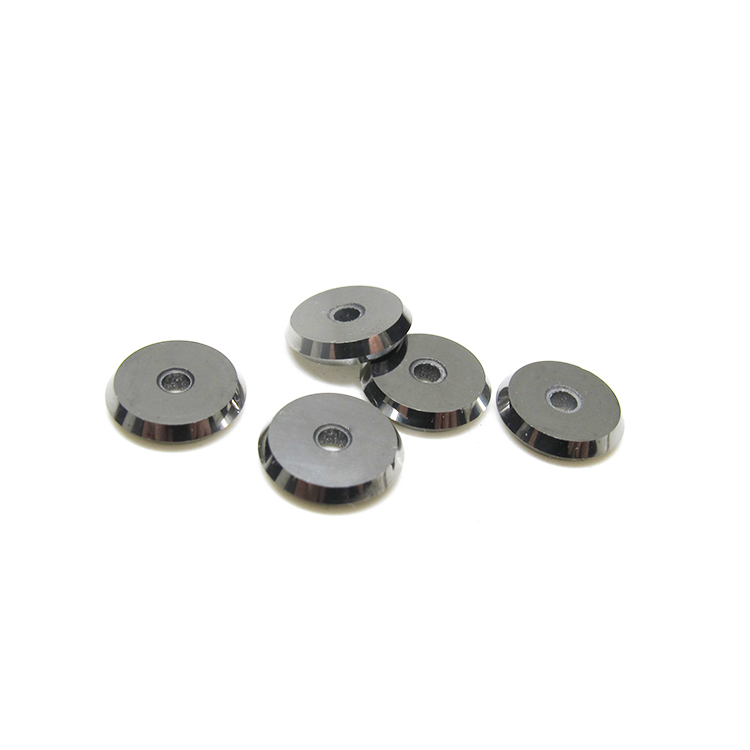

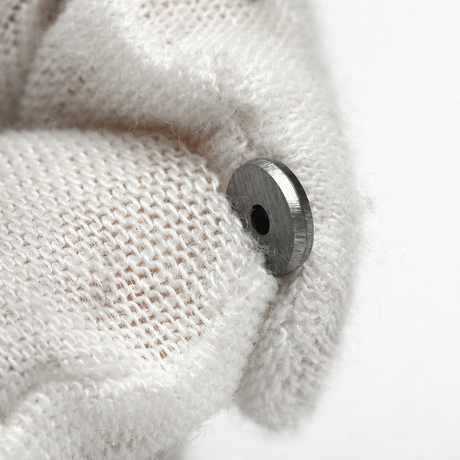

Carbide glass cutting wheels are available in different diameters and thicknesses.
The appropriate wheel size depends on the design of the glass cutter or cutting machine as well as the specific application.
When ordering replacement wheels, important dimensions may include:
Outside diameter
Wheel thickness
Bore diameter
Overall height
Mounting dimensions
Always ensure that the wheel dimensions are compatible with the cutting head or tool.
For OEM applications, manufacturers can produce carbide wheels according to drawings or samples.
The cutting angle is one of the most important characteristics of a glass cutting wheel.
The angle determines how the wheel contacts the glass surface and influences the formation of the score line.
Different glass thicknesses and cutting applications may require different cutting angles.
A properly selected angle can help achieve:
Smooth scoring
Consistent cutting depth
Reduced cutting force
Better glass separation
Longer tool life
For this reason, the cutting angle should be selected according to the actual application rather than simply choosing a standard specification.
Not all tungsten carbide materials have the same properties.
Carbide grades can differ in:
Hardness
Transverse rupture strength
Toughness
Wear resistance
Grain size
Binder content
A harder carbide grade may provide excellent wear resistance, while a tougher grade may offer better resistance to chipping.
For glass cutting applications, the ideal carbide grade should provide a suitable balance between wear resistance and toughness.
If the cutting environment is aggressive or the cutting wheel is exposed to impact, excessive hardness without sufficient toughness may increase the risk of edge chipping.
Cutting conditions also influence the performance of a carbide glass cutter.
Two important factors are cutting speed and cutting pressure.
Excessive pressure may produce an unnecessarily deep score or increase the risk of glass breakage and wheel damage.
Insufficient pressure, on the other hand, may result in an incomplete or inconsistent score.
For automated glass cutting machines, the cutting speed and pressure should be adjusted according to the glass type, thickness, wheel geometry, and equipment.
The right carbide cutter also depends on how the glass is processed.
Manual glass cutters are commonly used in workshops, construction, repair, and small-scale glass processing.
For these applications, the operator controls the cutting pressure and speed.
A carbide wheel with good wear resistance and a stable cutting edge can provide reliable performance.
Automated glass cutting machines are designed for high-volume production.
In this environment, the cutting wheel must provide:
Consistent geometry
High dimensional accuracy
Good wear resistance
Stable cutting performance
Reliable service life
For automated equipment, even small dimensional variations may affect cutting quality, so precision manufacturing is particularly important.
The carbide material is important, but the manufacturing quality of the wheel is equally significant.
Precision grinding can improve the dimensional accuracy and surface finish of the cutting wheel.
Important quality factors include:
Wheel roundness
Concentricity
Cutting edge geometry
Surface finish
Dimensional tolerance
A high-quality carbide grade combined with poor grinding accuracy may still result in unstable cutting performance.
Therefore, both material quality and manufacturing precision should be considered.
If the carbide glass cutter is used for high-volume production, service life becomes an important purchasing consideration.
A longer-lasting cutting wheel can help reduce:
Tool replacement frequency
Machine downtime
Maintenance costs
Production interruptions
However, service life depends on many factors, including glass type, cutting conditions, carbide grade, wheel geometry, and machine settings.
Instead of focusing only on the initial purchase price, it is better to evaluate the overall cost per cutting operation.
Standard carbide glass cutters are suitable for many common applications.
However, specialized glass-processing equipment may require customized dimensions.
A manufacturer can customize carbide glass cutting wheels according to:
Technical drawings
Samples
Required diameter
Wheel thickness
Bore size
Cutting angle
Carbide grade
Tolerance requirements
For OEM and industrial applications, customized carbide wheels can provide better compatibility with existing equipment.
Before purchasing a carbide glass cutter, confirm the following information:
Glass type: What type of glass will be cut?
Glass thickness: What is the thickness range?
Cutting method: Manual or automated?
Wheel diameter: What diameter is required?
Wheel thickness: What thickness is required?
Bore diameter: What mounting size is required?
Cutting angle: What angle is recommended?
Carbide grade: What balance of hardness and toughness is required?
Tolerance: What dimensional accuracy is needed?
Application volume: Low-volume or high-volume production?
Providing this information to the carbide manufacturer can make it much easier to select or develop the appropriate cutting wheel.
Choosing the right carbide glass cutter is not simply about selecting a hard material. The best solution depends on the combination of glass type, glass thickness, cutting wheel geometry, carbide grade, cutting conditions, and equipment requirements.
A properly selected tungsten carbide glass cutter can provide excellent wear resistance, stable scoring performance, and a long service life.
For standard applications, an existing carbide glass cutter may be sufficient. For specialized or high-volume applications, customized cutting wheels manufactured according to drawings or samples can provide a more precise solution.
The right carbide glass cutter can make a significant difference in cutting quality, tool life, and overall production efficiency.
