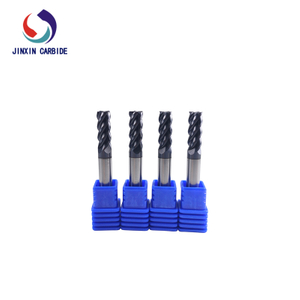

Carbide end mills are often coated to improve tool life, cutting speed, heat resistance, and wear resistance. Different coatings are suitable for different materials and machining conditions.

Common Coatings for Carbide End Mills:

TiN Coating

• One of the earliest and most economical coatings

• Reduces friction and improves tool life

• Suitable for general machining

• Not ideal for very high temperatures

Applications

• Carbon steel

• Aluminum

• Copper alloys

TiAlN / AlTiN Coatings

These are among the most popular modern coatings.

Advantages

• Excellent heat resistance

• Works well in dry cutting

• Increases cutting speed

• Extends tool life significantly

Applications

• Hardened steel

• Stainless steel

• Titanium alloys

• High-speed CNC machining

Difference Between TiAlN and AlTiN

• AlTiN contains more aluminum → better heat resistance

• TiAlN offers balanced toughness and wear resistance

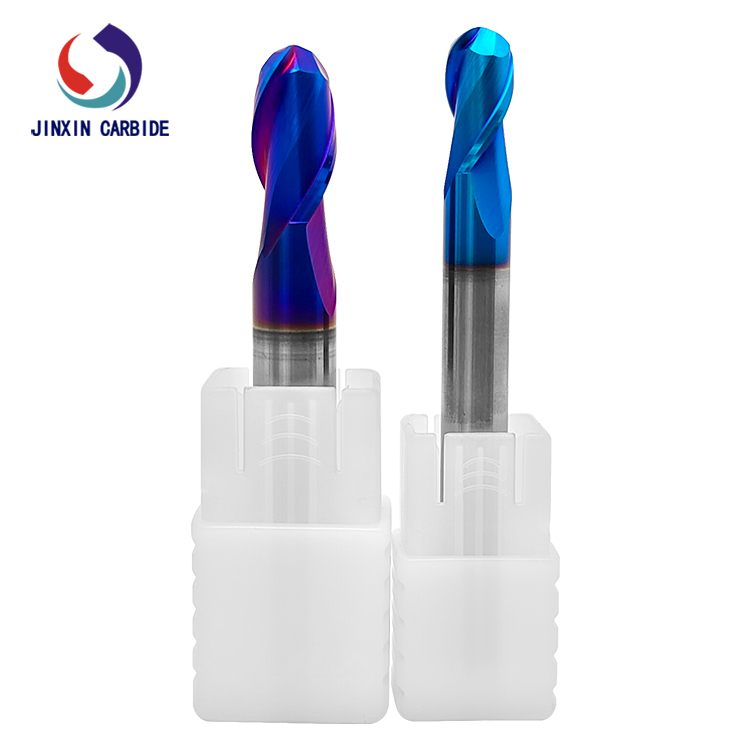

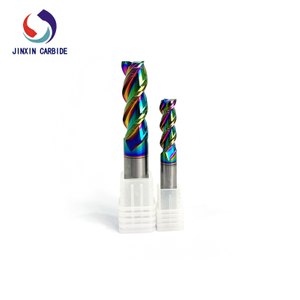

DLC Coating

Features

• Extremely smooth surface

• Very low friction coefficient

• Prevents aluminum sticking

Best For

• Aluminum

• Copper

• Plastics

• Non-ferrous machining

Diamond Coating

Advantages

• Highest hardness

• Exceptional wear resistance

• Long tool life in abrasive materials

Applications

• Graphite

• CFRP

• PCB materials

• Composite materials

Limitation

Not recommended for steel machining because carbon reacts with iron at high temperatures.

The coating greatly affects the performance of a carbide end mill. Selecting the proper coating depends on:

• Workpiece material

• Cutting speed

• Cooling condition

• Dry or wet machining

• Surface finish requirements

For general machining, TiAlN and AlTiN are widely used.
For aluminum machining, DLC and ZrN perform best.
For graphite and composites, diamond coating is the top choice.
