carbide strips
Jinxin
Product Description

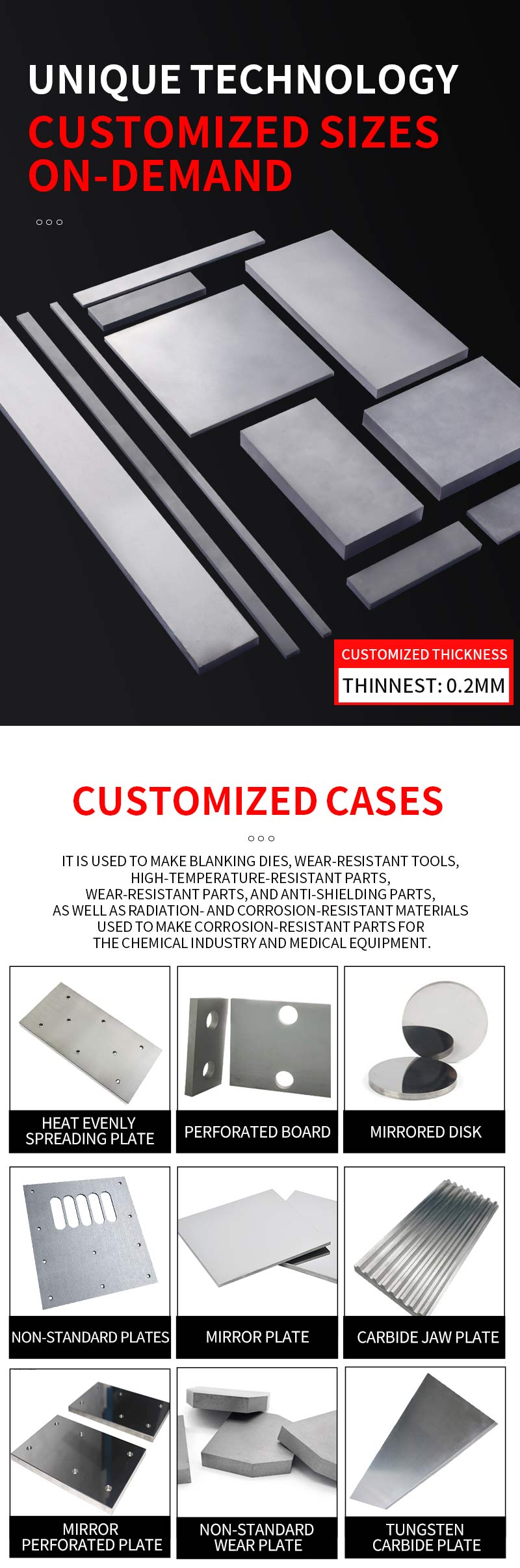

Customization Tungsten Carbide Strips
Tungsten carbide strips are widely used in molding, woodworking, recycling, and chemical industries where excellent wear, corrosion, or high-temperature resistance is required.Jinxin offers carbide plates in varied grades, including YG6, YG6A, and YG8. We supply both ground and unground tungsten carbide sheets. Apart from standard-sized plates, we also offer customization services according to your requirements. Request for quotation and our sales team and engineers will work together to provide the most cost-efficient solution for you.
Specifications
Brand，Performance & application recommended
| Grade | ISO | Density | Hardnes | T.R.S | Performance & application recommended | |||
| g/cm³ | HRA | MPa | ||||||
| YG6 | K10 | 14.90 | 90.5 | 2400 | Good wear resistance, suitable for machining hard wood, raw wood, aluminum section bar, brass rod and cast iron. | |||
| YG6A | K10 | 14.85 | 92.5 | 2000 | Wear resistance higher than YG6, suitable for machining hard wood, raw wood, aluminum section bar, brass rod and cast iron. | |||
| YG8 | K20 | 14.70 | 89.8 | 2800 | High wear and impact resistance，suitable for machining dry wood, soft wood and non-ferrous metal section bar. | |||
| YS2T | K30 | 14.25 | 92 | 2400 | Fine grain alloy, with high wear resistance, bending strength,bonding resistance and thermal strength. It is suitable for machining refractory alloys, stainless steel, high manganese steel, etc. | |||
| YL10.2 | K30 | 14.45 | 91.8 | 3000 | Wear resistance and strength comparatively higher,suitable for machining cast iron,non-ferrous metal and non-metallid materials. | |||
Applications
Cemented carbide long bar has the characteristics of high red hardness, good weldability, high hardness, high wear resistance, mainly used in the production and processing of solid wood, density board, gray cast iron, non-ferrous metal materials, chilled cast iron, hardened steel, PCB, brake materials. The use should be specifically based on the use of the selection of the appropriate material carbide long bar.
