carbide rods
Jinxin
Product Description

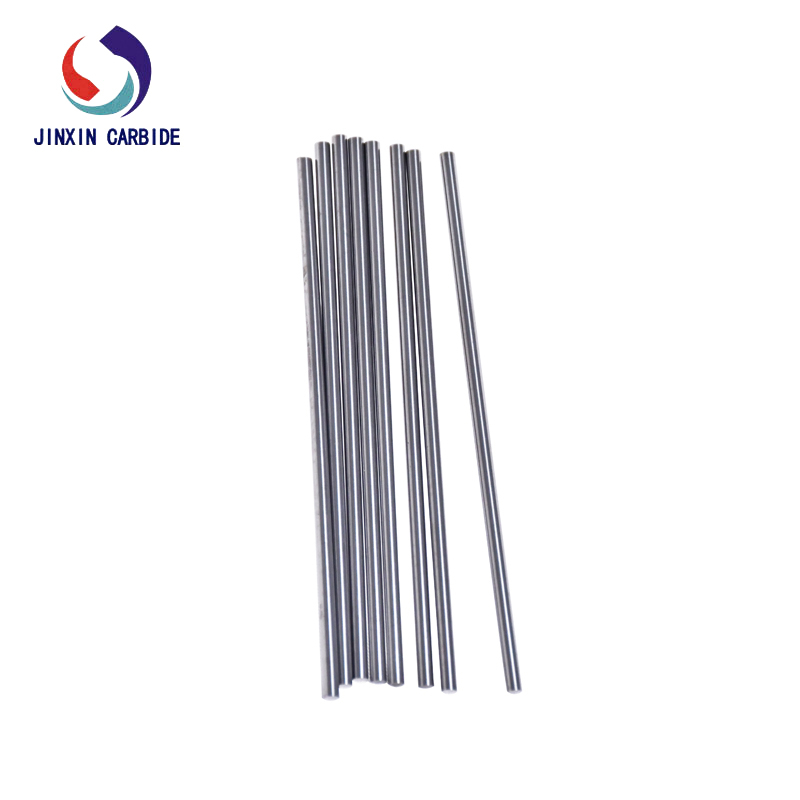

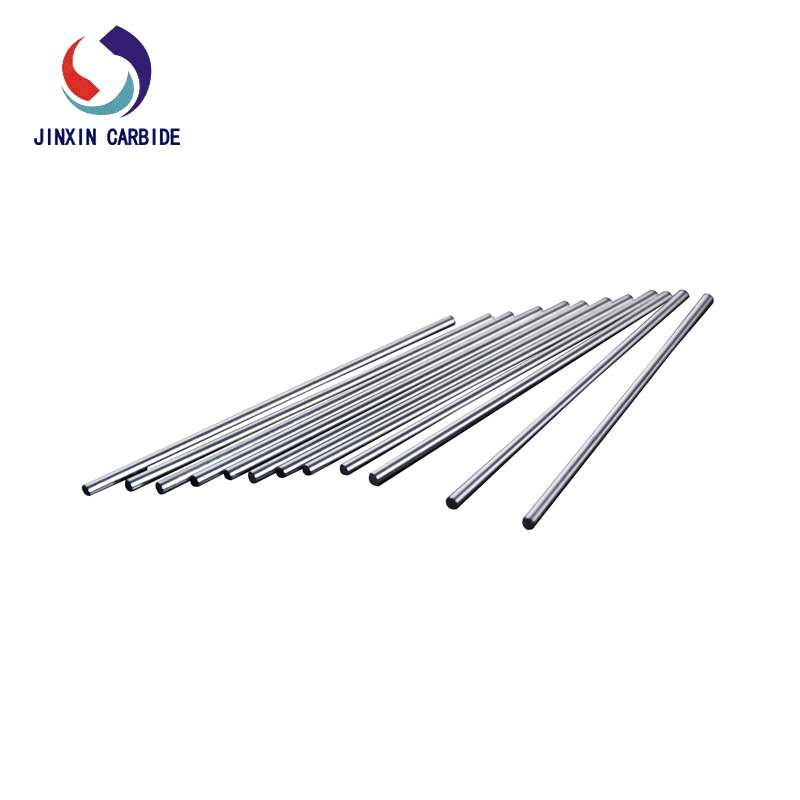

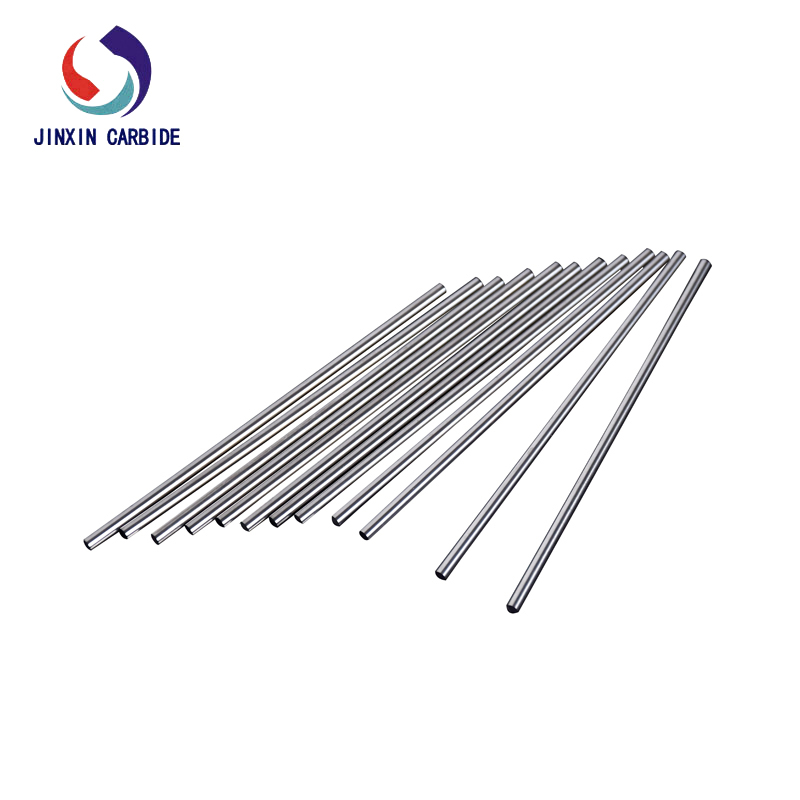

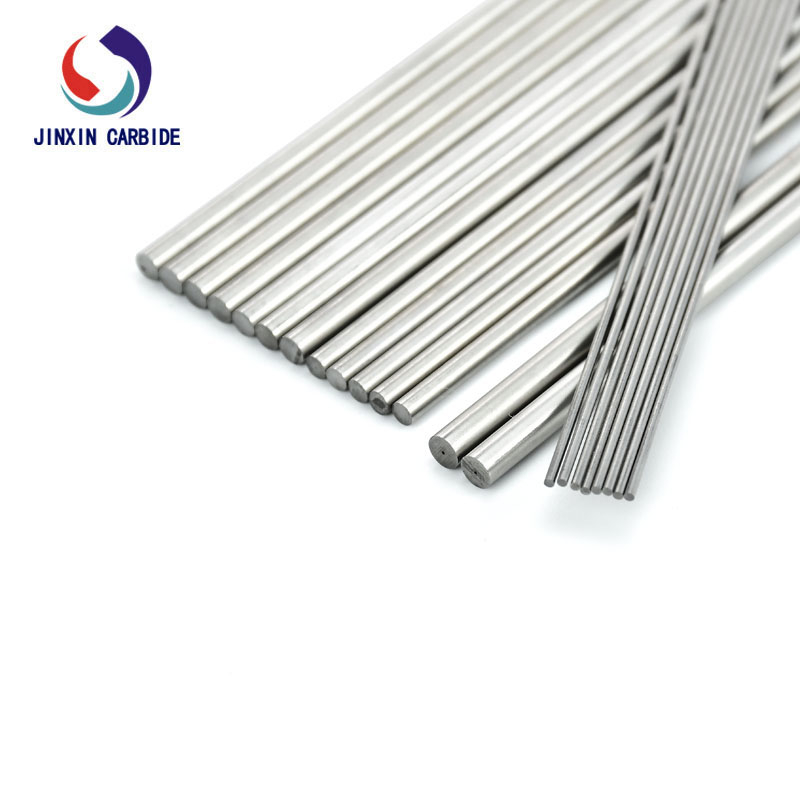

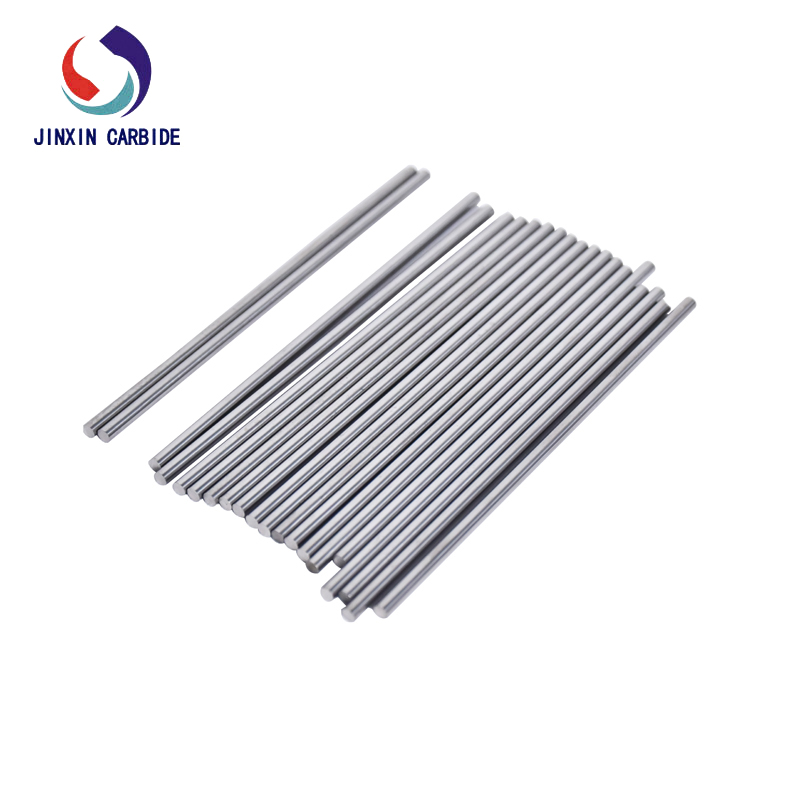

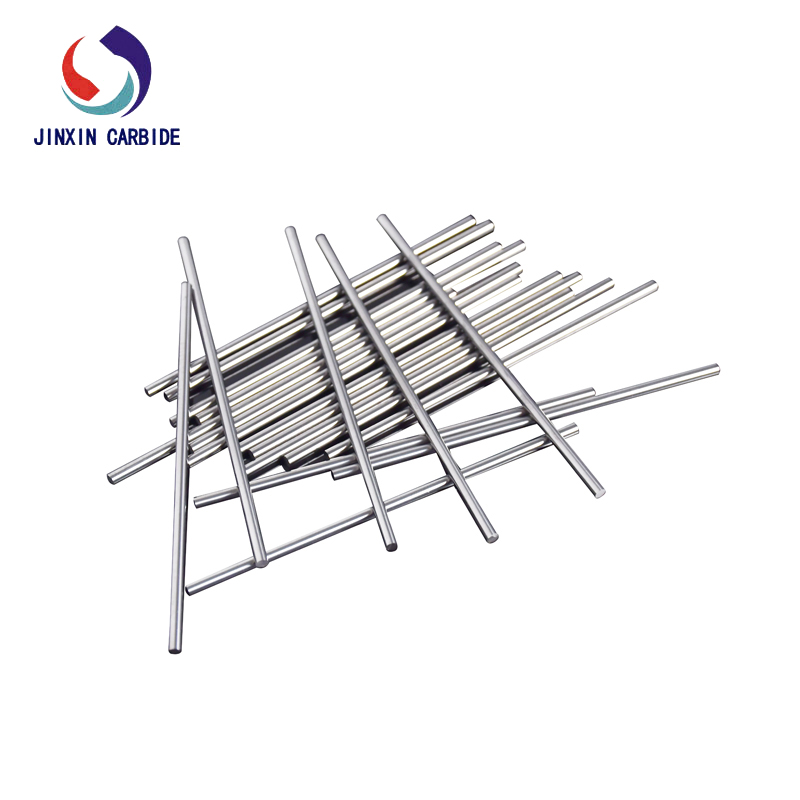

Tungsten carbide micro diameter rods are ultra-precision cylindrical blanks made from cemented carbide (WC–Co), typically with diameters below 3 mm—and often down to 0.05–1.0 mm. They’re widely used where extreme hardness, wear resistance, and dimensional stability are critical.
Feature:
Ultra-fine grain structure (0.2–0.8 μm)
Improves hardness and edge sharpness, essential for micro-tools.
High hardness (HRA 90–94)
Maintains cutting performance even at very small diameters.
Good transverse rupture strength (TRS)
Prevents breakage during high-speed micro machining.
Excellent wear & heat resistance
Performs well in demanding materials like stainless steel and composites.
Common Grades
| Grade | Grain Size | Co% | Features | Application |
|---|---|---|---|---|
| YG6/YG8 | 0.5 μm | 6–8% | High hardness | PCB drills, micro cutters |
| YG10 | 0.8 μm | 10% | Balanced strength | General micro tools |
| YG12 | 1.0 μm | 12% | Higher toughness | Slightly larger diameters |
1. Micro cutting tools
PCB drills
Micro end mills
Dental burs
Engraving tools
2. Precision components
Micro pins & shafts
Nozzle needles
Watch & electronics parts
3. Special industries
Aerospace micro machining
Medical device manufacturing
Semiconductor tooling
